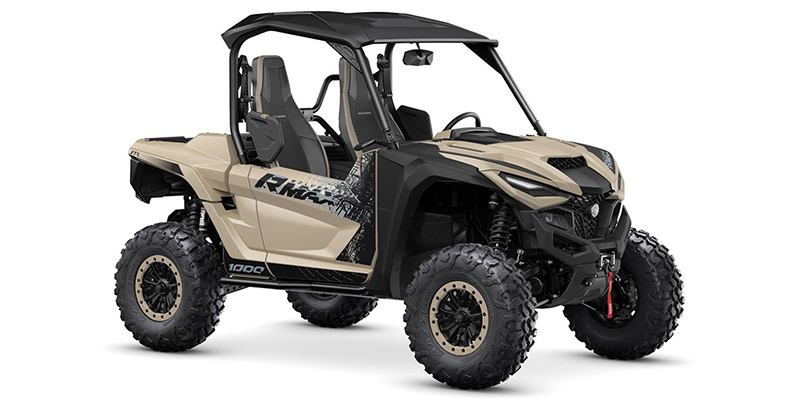

2023 Yamaha Wolverine RMAX2 1000 XT-R
IN STOCK NOW!
Stock #Y11694
MSRP:
$27,199
USD
Discount:
$4,204
Your Price: $22,995 USD
Destination Charges May Apply
Tax and DMV fees depend on your state.
Assembly, set-up, and delivery to your home (within 100 miles) is FREE!
Pricing may change due to OEM price adjustments throughout the year
- Status:New
- Vehicle:2023 Yamaha Wolverine RMAX2 1000 XT-R
- VIN:5Y4AN42Y4PA111694
- Model Number:YXE10WRZPB
- Color:Desert Tan / Tactical Black
- Stock Number:Y11694
- Location:Martin Moto
- Warranty:Manufacturer's w/ Extended Available
AUDIO & COMMUNICATION
- Number Of Speakers:2
BRAKES
- Front Brake Diameter (in):10
- Front Brake Diameter (mm):255
- Front Brake Type:Dual Hydraulic Disc
- Rear Brake Diameter (in):9.6
- Rear Brake Diameter (mm):244.5
- Rear Brake Type:Dual Hydraulic Disc
DRIVE LINE
- Differential Lock Location:Front
- Driveline Brand:On-Command™
- Driveline Type:Selectable 4X2 / 4X4
- Limited Slip Differential Location:Front
- Number Of Driveline Modes:2
ENGINE
- Bore (in):3.66
- Bore (mm):93
- Carburetion Type:Fuel Injected
- Compression Ratio:11.2
- Cooling:Liquid
- Cylinders:2
- Displacement (cc):999
- Displacement (ci):60.9
- Engine Stroke:4-Stroke
- Engine Type:Parallel Twin
- Fuel Injector Size (mm):48
- Fuel Injector:Yes
- Fuel Requirements:Regular
- Fuel Type:Gas
- Starter:Electric
- Stroke (in):2.89
- Stroke (mm):73.5
- Valve Configuration:DOHC
- Valves Per Cylinder:4
- Valves:8
EXTERIOR
- Bash Plate (Front):Yes
- Body Material:Plastic
- Brush Guard:Yes
- Cab Canopy Material:Hard
- Cab Door Material:Hard
- CV Boot Cover:Yes
- Exhaust Guard:Yes
- Frame:Steel
- Full Length Skid Plate:Yes
- Radiator Guard:Yes
INSTRUMENTATION
- Fuel Level Warning Type:Gauge
- Temperature Warning Type:Light
LIGHTS
- Type:LED
SEATS
- Headrest:Yes
- Number Of Rows:1
- Number Of Seats:2
- Seat Material:Vinyl
- Seat Type:Bucket
STEERING
- Steering Control:Steering Wheel
- Steering Type:Power
STORAGE
- Bed Capacity (kgs.):272.2
- Bed Capacity (lbs.):600
- Cargo Bed Tilt:Yes
- Integral Tie-Down Hooks:Yes
- Number Of Cupholders:2
SUSPENSION
- Adjustment Type:Spring Mounted Adjustment
- Front Adjustable Fork Pre-Load:Yes
- Front Stabilizer Bar:Yes
- Front Suspension Brand Name:Fox®
- Front Suspension Type:Independent Double Wishbone
- Front Travel (in):14.2
- Front Travel (mm):360.7
- Number Rear Shock Absorbers:2
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Stabilizer Bar:Yes
- Rear Suspension Brand Name:Fox®
- Rear Suspension Type:Independent Double Wishbone
- Rear Travel (in):16.9
- Rear Travel (mm):429.3
TECHNICAL SPECIFICATIONS
- Engine Displacement to Weight (cc):0.53
- Fuel Capacity (gal):9.2
- Fuel Capacity (l):34.8
- Ground Clearance (in):13.8
- Ground Clearance (mm):350.5
- Height (in):77.8
- Height (mm):1976.1
- Length (ft):9.94
- Length (ft/ft):9
- Length (ft/in):11.3
- Length (in):119.3
- Length (mm):3030.2
- Towing Capacity (kgs):907.2
- Towing Capacity (lbs):2000
- Turning Radius (ft):19.7
- Wet Weight (kg):851
- Wet Weight (lbs):1876
- Wheelbase (in):86.7
- Wheelbase (mm):2202.2
- Width (in):66.1
- Width (mm):1678.9
TOWING & HAULING
- Rear Hitch Type:Receiver
- Size (cm):5.1
- Size (in):2
- Weight (kgs):2041.2
- Weight (lbs):4500
- Winch Brand Name:Warn®
TRANSMISSION
- Hi / Low Range:Yes
- Primary Drive (Engine / Transmission):Belt
- Primary Drive (Front Wheel):Shaft
- Primary Drive (Rear Wheel):Shaft
- Reverse:Yes
- Transmission Brand:UltraMatic™
- Transmission Type:Continuously Variable (CVT)
WHEELS & TIRES
- Front Tire (Full Spec):Maxxis® Carnivore™ 30 X 10.00R-14
- Front Tire Diameter (in):30
- Front Tire Width:10
- Front Wheel Diameter:14
- Rear Tire (Full Spec):Maxxis® Carnivore™ 30 X 10.00R-14
- Rear Tire Diameter (in):30
- Rear Tire Width:10
- Rear Wheel Diameter:14
- Tire Brand:Maxxis®
- Tread Type:All Terrain
- Tube / Tubeless:Tubeless
- Wheels Composition:Aluminum
