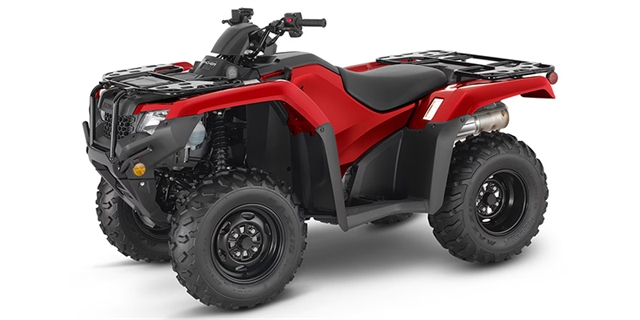

2025 Honda FourTrax Rancher 4X4 AT EPS
IN STOCK NOW!
Stock #H00658
MSRP: $8,499 USD
Destination Charges May Apply
Tax and DMV fees depend on your state.
Assembly, set-up, and delivery to your home (within 100 miles) is FREE!
Pricing may change due to OEM price adjustments throughout the year
- Status:New
- Vehicle:2025 Honda FourTrax Rancher 4X4 AT EPS
- VIN:1HFTE4106SJ100658
- Model Number:TRX420FA2S
- Color:Hero Red
- Stock Number:H00658
- Location:Martin Moto
- Warranty:Manufacturer's w/ Extended Available
BRAKES
- Front Brake Diameter (in):7.5
- Front Brake Diameter (mm):190
- Front Brake Type:Dual Hydraulic Disc
- Rear Brake Diameter (in):6.3
- Rear Brake Diameter (mm):160
- Rear Brake Type:Sealed Drum
DRIVE LINE
- Driveline Brand:TraxLok™
- Driveline Type:Selectable 4X2 / 4X4
- Limited Slip Differential Location:Front
- Number Of Driveline Modes:2
ENGINE
- Bore (in):3.41
- Bore (mm):86.5
- Carburetion Brand:Keihin
- Carburetion Type:Fuel Injected
- Compression Ratio:9.9
- Cooling:Liquid
- Cylinders:1
- Displacement (cc):420
- Displacement (ci):25.6
- Engine Stroke:4-Stroke
- Engine Type:Single-Cylinder
- Fuel Injector Size (mm):34
- Fuel Injector:Yes
- Fuel Requirements:Regular
- Fuel Type:Gas
- Starter:Electric
- Stroke (in):2.82
- Stroke (mm):71.5
- Valve Configuration:OHV
- Valves Per Cylinder:2
- Valves:2
EXTERIOR
- Bash Plate (Front):Yes
- Brush Guard:Yes
- CV Boot Cover:Yes
- Floor Board Location:Driver
- Frame:Steel
INSTRUMENTATION
- Fuel Level Warning Type:Gauge
- Temperature Warning Type:Gauge
LIGHTS
- Type:Halogen
SEATS
- Number Of Seats:1
- Seat Height (in):33.6
- Seat Height (mm):853.4
- Seat Location:Driver
- Seat Material:Vinyl
- Seat Type:One-Piece
STEERING
- Steering Control:Handlebar
- Steering Type:Manual
STORAGE
- Capacity (kgs):29.9
- Capacity (kgs):60.3
- Capacity (lbs):133
- Capacity (lbs):66
- Fender Storage Location:Front
SUSPENSION
- Front Adjustable Fork Pre-Load:Yes
- Front Suspension Type:Independent Double Wishbone
- Front Travel (in):6.7
- Front Travel (mm):170
- Number Rear Shock Absorbers:1
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Suspension Material:Steel
- Rear Suspension Type:Swing Arm
- Rear Travel (in):6.7
- Rear Travel (mm):170
TECHNICAL SPECIFICATIONS
- Fuel Capacity (gal):3.9
- Fuel Capacity (l):14.8
- Fuel Capacity Reserve (gal):1.3
- Fuel Capacity Reserve (l):4.9
- Ground Clearance (in):7.1
- Ground Clearance (mm):180.3
- Height (in):46.2
- Height (mm):1173.5
- Length (ft):6.9
- Length (ft/ft):6
- Length (ft/in):10.8
- Length (in):82.8
- Length (mm):2103.1
- Towing Capacity (kgs):384.7
- Towing Capacity (lbs):848
- Turning Radius (ft):9.2
- Wet Weight (kg):279
- Wet Weight (lbs):615
- Wheelbase (in):50
- Wheelbase (mm):1270
- Width (in):47.4
- Width (mm):1204
TRANSMISSION
- Number Of Speeds:5
- Primary Drive (Front Wheel):Shaft
- Primary Drive (Rear Wheel):Shaft
- Reverse:Yes
- Transmission Type:Automatic
WHEELS & TIRES
- Front Tire (Full Spec):Maxxis® 24 x 8-12
- Front Tire Diameter (in):24
- Front Tire Width:8
- Front Wheel Diameter:12
- Rear Tire (Full Spec):Maxxis® 24 x 10-11
- Rear Tire Diameter (in):24
- Rear Tire Width:10
- Rear Wheel Diameter:11
- Tire Brand:Maxxis®
- Tube / Tubeless:Tubed
- Wheels Composition:Steel
