2016 Yamaha FZ-09

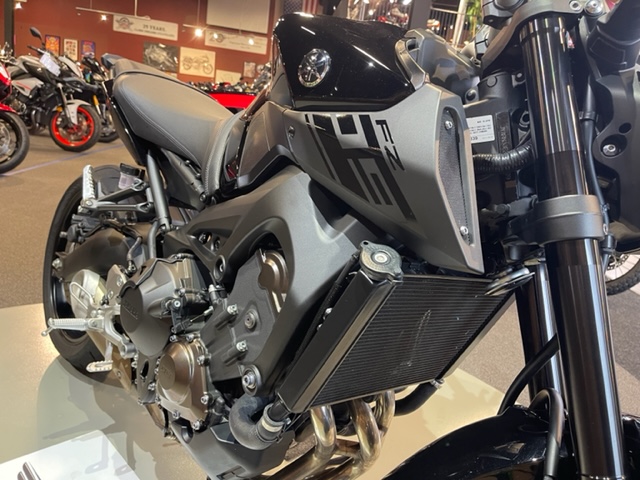

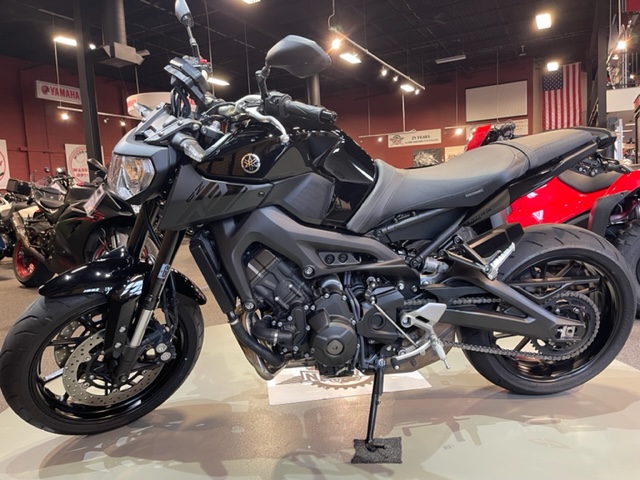

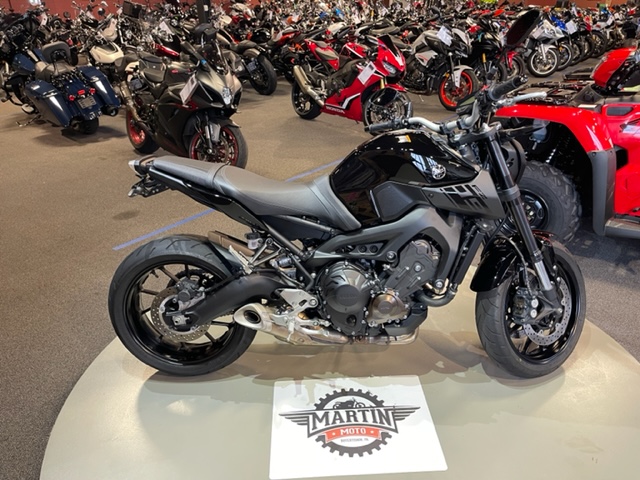

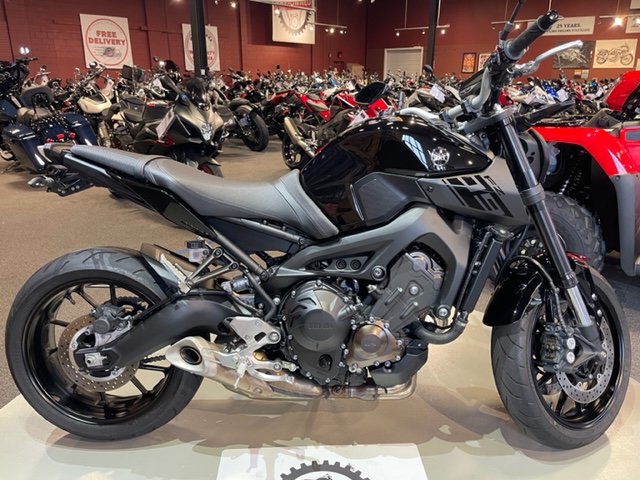

This 2015 FZ-09, a naked sports roadster powered by a liquid-cooled, 850 cc in-line 3-cylinder, fuel-injected engine. The FZ-09 has been developed around the concept of a “Synchronized Performance”, that allows a rider to enjoy the feeling of complete control in typical everyday riding situations. In other words, the FZ-09 has been designed to respond to your every command.
The bike has been left mechanically stock, with the only aftermarket additions being in the form of:
*Tail tidy
*Aftermarket turn signals
Going through the shop, our techs tended to the bikes following needs:
Updated Inspection
Oil and filter change
Fluid flush
The perks of doing it the Martin Moto way include:
- Free delivery within 100 miles
- We offer SSD (Search, Sign, Deliver) so you can purchase from your couch (via Docusign)
- 50 point service inspection on all Motorcycles
- Includes a 500 MILE warranty-
- Extended warranties available including a lifetime battery guarantee
- Battery tender included with purchase
- Bike will come professionally detailed
- Happy to trade your bike/ATV etc.
- Dozens of finance sources for all credit types
- Will be delivered with a full tank of gas and PA State inspection if applicable
- Status:Pre-Owned
- Vehicle:2016 Yamaha FZ-09
- VIN:JYARN33E3GA009339
- Model Number:FZ09
- Mileage:1,423 miles
- Color:Raven
- Stock Number:J09339
- Location:Martin Moto
- Warranty:500 Mile Warranty with Extended Available
BRAKES
- Front Brake Diameter (in):11.7
- Front Brake Diameter (mm):298
- Front Brake Type:Dual Hydraulic Disc
- Rear Brake Diameter (in):9.6
- Rear Brake Diameter (mm):245
- Rear Brake Type:Hydraulic Disc
ENGINE
- Bore (in):3.07
- Bore (mm):78
- Carburetion Type:Fuel Injected
- Compression Ratio:11.5
- Cooling:Liquid
- Cylinders:3
- Displacement (cc):847
- Displacement (ci):51.7
- Engine Stroke:4-Stroke
- Engine Type:Horizontal In-line
- Fuel Injector:Yes
- Fuel Requirements:Regular
- Fuel Type:Gas
- Starter:Electric
- Stroke (in):2.33
- Stroke (mm):59.1
- US Miles Per Gallon (Combined):44
- Valve Configuration:DOHC
- Valves Per Cylinder:4
- Valves:12
EXTERIOR
- Body Material:Plastic
- Chain Guard:Yes
- Exhaust Guard:Yes
- Foot Peg Location:Driver and Passenger
- Frame:Aluminum
- Heel Guards:Yes
- Stand Type:Kick
INSTRUMENTATION
- Fuel Level Warning Type:Gauge
- Temperature Warning Type:Light
LIGHTS
- Type:Halogen
SEATS
- Number Of Seats:2
- Seat Height (in):32.1
- Seat Height (mm):815.3
- Seat Location:Driver and Passenger
- Seat Material:Vinyl
- Seat Type:One-Piece
STEERING
- Steering Control:Handlebar
SUSPENSION
- Front Adjustable Fork Pre-Load:Yes
- Front Adjustable Rebound Damping:Yes
- Front Suspension Size (in):1.6
- Front Suspension Size (mm):41
- Front Suspension Type:Inverted Fork
- Front Travel (in):5.4
- Front Travel (mm):137.2
- Number Rear Shock Absorbers:1
- Rear Adjustable Rebound Damping:Yes
- Rear Adjustable Shock / Spring Pre-Load:Yes
- Rear Suspension Material:Aluminum
- Rear Suspension Type:Twin Sided Swing Arm
- Rear Travel (in):5.1
- Rear Travel (mm):129.5
TECHNICAL SPECIFICATIONS
- Engine Displacement to Weight (cc):2.05
- Fuel Capacity (gal):3.7
- Fuel Capacity (l):14
- Ground Clearance (in):5.3
- Ground Clearance (mm):134.6
- Height (in):44.7
- Height (mm):1135.4
- Length (ft):6.81
- Length (ft/ft):6
- Length (ft/in):9.7
- Length (in):81.7
- Length (mm):2075.2
- Wet Weight (kg):187.8
- Wet Weight (lbs):414
- Wheelbase (in):56.7
- Wheelbase (mm):1440.2
- Width (in):32.1
- Width (mm):815.3
TRANSMISSION
- Number Of Speeds:6
- Primary Drive (Rear Wheel):Chain
- Transmission Type:Manual
WHEELS & TIRES
- Front Tire (Full Spec):120/70 ZR17
- Front Tire Aspect Ratio:70
- Front Tire Speed Rating:Z
- Front Tire Width:120
- Front Wheel Diameter:17
- Front Wheel Width (in):3.5
- Rear Tire (Full Spec):180/55 ZR17
- Rear Tire Aspect Ratio:55
- Rear Tire Speed Rating:Z
- Rear Tire Width:180
- Rear Wheel Diameter:17
- Rear Wheel Width (in):5.5
- Tube / Tubeless:Tubeless
- Wheels Composition:Aluminum
